New Gauge Cluster and Harness upgrade...


Mark
 Share

Recommended Posts

  • Admin

So These tired Gauges with their old technology wire template...

with dark barely usable gauges... yeah its time for the change...

So I white Faced them for the cheap 30 bucks or whatever...

Helped considerably...

Until I tried Red Led lights then it was no better than the black face with a white light...

yea they looked cool except the two main center ones that were still bright white...

again Fail...



Before Dash.JPG



Red Vs White Guages.jpg

Here I go Again...


 Mark@AmericanJeeper.us

Link to comment
Share on other sites

  • Admin

So then when I got the last engine in a deal with it came along a Painless wiring harness a 10 point cage... the engine transmission but I painted the engine and all new... it only has 20 miles on the engine...

anyhow so I got approx 1400 in Gauges and sensors so I figured why not...part of the selling point the fact the guy took a Factory 1977 Bandit Edition then did that to the engine added a 10 point roll cage none of the factory wiring used just went painless with a giant racing flip switch box on the floor and giant hurst shifter the giant gaudy one...I was shit man...

He could ruin a wet dream I got the car for the engine and electronics...and put them all to good use...











Here I go Again...


 Mark@AmericanJeeper.us

Link to comment
Share on other sites

  • Admin

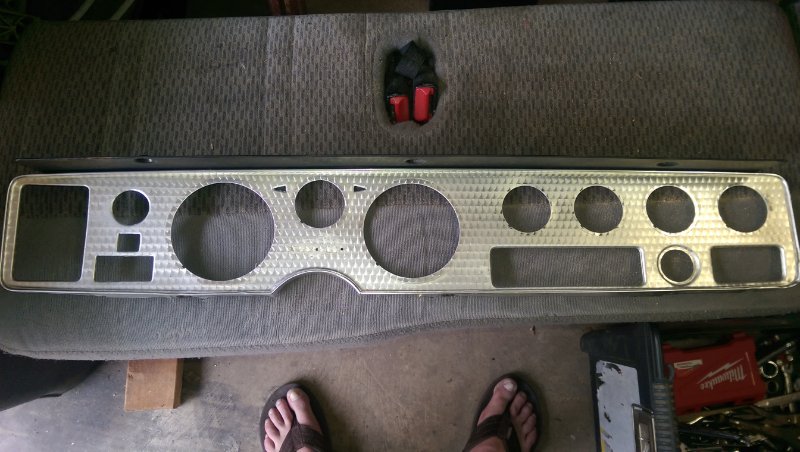

So I started off painting the Bezel Gold instead of the silver they came with...

Then I built a wiring harness for them...

Then I installed them only problem ...

I forgot the blinkers and High beam indicator so I made some...

And that was that... 🙂

These are 5" Racing Gauges and the factory are 3 1/3rd something like that...
